Plastic Pipe End Caps
Plastic pipe end caps are a kind of protective product on the steel pipe which played a protective role. The specific protection of the pipe includes seamless steel pipe and welded steel pipe, gas pipe, and other round pipes. Qiming Packaging plastic pipe end caps hold a variety of protection forms, such as outside the button protection, plug protection, threat protection, and 4 legs type protection. The feature of the External button type: Not only protect the inside of the steel pipe to form a closed space inside the pipe but also completely protect the steel pipe end. This form is more common in the steel pipe transport and storage process and also has played a very good effect. The feature of Internal plug protection: The plug-in plastic pipe end cap is a form of protection that can also make the pipe inside the formation of a closed space, conducive to the protection of pipe. Unlike the external type, it is not possible to effectively protect the outer wall of the pipe end. Because this form of protection is conducive to the lifting of the pipe, it is also one of the more common forms. Contact our support team to learn more. We are a professional and experienced manufacturer of plastic valve/flange protectors, plastic pipe end caps,etc.No matter what kinds of plastic end caps you need for your valve, flange, and pipe, you always can find the right caps here. Following pls find the function of our Plastic Caps. 1. Protect petroleum, gas, and water type valve flanges 2. Protect raised face and pipe interior from dirt and moisture during the shot and sandblasting operations 3. The tapered plug design fits snugly into the pipe’s interior 4. Require no fasteners 5. Application: protect valves from damage and contamination during transit, handling, and storage 6. Most sizes in stock for immediate delivery
Plastic Pipe End Caps External Type
6mm-1981.2mm Plastic Pipe End Caps
3/8″ 60″64″72″78″ Plastic Pipe End Caps
1/8″ 1/4″ 1/2″ 3/4″ Plastic Pipe End Caps
2″ 2 1/2″ 3 ” 4 ” 5 ” 6″ 8″ 40″ 42″44″48″54″ Plastic Pipe End Caps
10″ 12″ 14″ 18 ” 20 ” 22″ 24 ” 26″ 28 ” 34″ 38 “Plastic Pipe End Caps
PE Plastic Pipe End Caps With Thread
Product Details
Dimensions OD(mm) ( φ ) | ||||||
6 | 26.7(3/4") | 57 | 108 | 168.3(6") | 305 | 609.6(24") |
6.3 | 28 | 60.3(2") | 110 | 180 | 315 | 630 |
8 | 30 | 63 | 113 | 190 | 318 | 660.4(26") |
9.53 | 32 | 63.5 | 114.3(4") | 194 | 323.9(12") | 711.2(28") |
10.3(1/8") | 33.4(1") | 67 | 121 | 200 | 325 | 720 |
12 | 34 | 70 | 125 | 205 | 345 | 762(30") |
12.7 | 35 | 73(2 1/2") | 127 | 216 | 355.6(14") | 812.8(32") |
13.7(1/4") | 38.1 | 75 | 129 | 219.1(8") | 365 | 820 |
15 | 40 | 76.2 | 133 | 225 | 377 | 863.6(34") |
16 | 42.2(11/4") | 80 | 139.7 | 245 | 395 | 914.4(36") |
17.1(3/8") | 45 | 83 | 140 | 250 | 406.4(16") | 965.2(38") |
18 | 48.3(11/2") | 85 | 141.3(5") | 255 | 426 | 1016(40") |
19 | 50 | 88.9(3") | 152 | 267 | 457.2(18") | 1066.8(42") |
20 | 51 | 90 | 154 | 273(10") | 480 | 1219.2(48") |
21.3 | 52 | 95 | 159 | 280 | 508(20") | 1422.4(56") |
22 | 53 | 102 | 160 | 285 | 530 | 1524(60") |
25.4 | 54 | 104 | 165 | 299 | 558.8(22") | 1981.2(78“) |
Each diameter has its own height,contact our support team for more info or send email to :mail@qiminggroup.com |
1. Size: 1/2″-120″(6mm-3048mm) Other sizes can be customized
2. Color: Yellow, Blue(standard color), White, Orange, Black, Red, Green, etc
3. Material: LDPE
4. Most sizes in-stock need 5-7working days after receiving your payment
5. Pvc Pipe End Caps will save you the cost and time that will come from rejects and it is a way to have inexpensive insurance for your manufactured products.
6. Pipe End Caps are to protect and cover the ends of pipe from being damaged in storage, shipping, transit, and before installation.
Plastic Pipe End Caps internal Type
1/8 inch – 48 inch Plastic Pipe End Plugs
ø6 mm-ø32mm Plastic Pipe End Plugs
ø33.4mm- ø70mm Plastic Pipe End Plugs
ø 73mm- ø250mm Plastic Pipe End Plugs
ø 255mm- 1219.2mm Plastic Pipe End Plugs
Plastic Pipe End Plugs Design With Holes
ф(mm) | H(mm) | ф(mm) | H(mm) | ф(mm) | H(mm) |
6 | 10 | 73(2 1/2") | 30 | 255 | 42 |
8 | 11 | 75 | 30 | 267 | 45 |
10.3(1/8") | 12 | 76.2 | 31 | 273(10") | 45 |
12 | 12 | 80 | 35 | 280 | 45 |
13.7(1/4") | 14 | 83 | 35 | 285 | 52 |
15 | 15 | 85 | 35 | 299 | 52 |
16 | 15 | 88.9(3") | 35 | 305 | 52 |
17.1(3/8") | 17 | 90 | 35 | 315 | 52 |
18 | 17 | 95 | 35 | 318 | 52 |
19 | 17 | 102(3 1/2") | 35 | 323.9(12") | 56 |
20 | 17 | 104 | 35 | 325 | 56 |
21.3(1/2") | 17 | 108 | 35 | 345 | 60 |
22 | 17 | 110 | 35 | 355.6(14") | 60 |
25 | 18 | 114.3(4") | 35 | 365 | 61 |
26.7(3/4") | 18 | 121 | 35 | 377 | 61 |
28 | 18 | 127 | 35 | 395 | 61 |
30 | 20 | 129 | 36 | 406.4(16") | 61 |
32 | 20 | 133 | 36 | 426 | 61 |
33.4(1") | 20 | 139.7(5") | 36 | 457.2(18") | 61 |
34 | 20 | 141.3(5") | 36 | 480 | 63 |
35 | 20 | 152 | 36 | 508(20") | 63 |
38 | 24 | 159 | 40 | 530 | 80 |
40 | 24 | 160 | 40 | 558.8(22") | 80 |
42.2(1 1/4") | 25 | 165 | 40 | 609.6(24") | 86 |
45 | 27 | 168.3(6") | 40 | 630 | 88 |
48.3(1 1/2") | 27 | 178.7 | 40 | 660.4(26") | 88 |
50 | 27 | 190 | 42 | 711.2(28") | 88 |
51 | 28 | 194 | 42 | 720 | 100 |
52 | 28 | 200 | 42 | 762(30") | 100 |
53 | 28 | 205 | 42 | 812.8(32") | 100 |
54 | 28 | 216 | 42 | 863.6(34") | 100 |
57 | 29 | 219.1(8") | 42 | 914.4(36") | 100 |
60.3(2") | 30 | 225 | 42 | 1016(40") | 100 |
62 | 30 | 245 | 42 | 1066.8(42") | 100 |
63 | 30 | 250 | 42 | 1219.2(48") | 100 |
70 | 30 | customized size contact mail@qiminggroup.com |
Plastic End Caps For Forged Flanges Shafts
DN 15 – DN 1000 Flange Face Protection Plugs
Diameter44mm -1124mm Flange Face Protection Plugs
DN10- DN 500 Push In Full Face FlangeProtectors
1/2″-40″ plastic plugs to fill holes type end plugs
DN 10-DN600-16 Stud Hole Flange Protectors

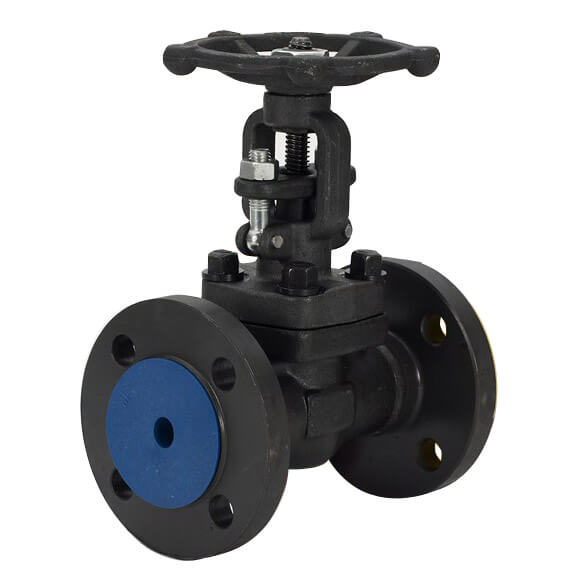

Plastic End Caps For Valves
50 mm -350mm Plastic End Caps For Valves
355mm -770mm Plastic End Caps For Valves
1/2″ -48 “plastic full-face valve end caps
DN 10 – DN 1000 Plastic End Caps For Valves
DN15-DN600 Plastic End Caps For Valves
- Plastic pipe end caps plastic end plugs with a full face or plug-in type, especially for round pipes, forged main shafts, flanges, and valves.
- Diameter6 mm-1981.2mm is available.
- FREE samples are available for quality tests.
- Email us now!mail@qiminggroup.com
